CNC Busbar Bending Machine

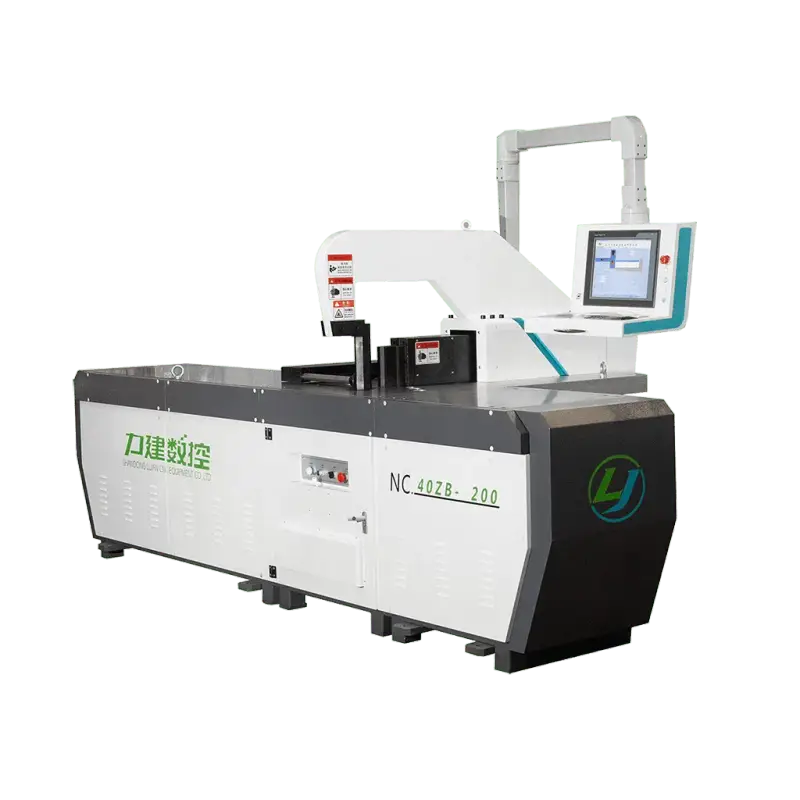

The NC.40ZB-1200 CNC Busbar Bending Machine is an efficient, highly automated, and high-precision solution for bending copper and aluminum busbars. Powered by servo motors and controlled by CNC units, the machine is further enhanced by a self-developed CAD/CAM software system. Together, these features ensure that its level of automation ranks among the highest in the industry. As a result, it serves as ideal equipment for busbar processing in applications such as complete high- and low-voltage equipment sets, box-type substations, transformers, and busbar ducts.

In terms of drive technology, the machine adopts a high-inertia servo motor as the main power source, which delivers transmission force to a high-precision planetary reducer and a ground ball screw.

When compared with traditional hydraulic bending machines, it delivers several distinct advantages:

First, the transmission is stable and offers high repeatable positioning accuracy. Moreover, precision remains unaffected by temperature variations, ensuring greater long-term stability.

Additionally, an automatic stop function in standby mode significantly reduces energy consumption during operation.

Furthermore, by using a servo motor as the power source, the machine completely avoids the oil leakage issues commonly associated with hydraulic systems.

Another key advantage is its low noise output during operation, thanks to the quiet servo motor, which reduces noise pollution in the workplace.

The machine also features a centering carrier mode and linear guides, which balance stress distribution and minimize the impact of eccentric loads and friction on screw service life and processing accuracy.

Finally, the material stop ruler is divided into three gears, allowing manual adjustment according to processing requirements—thereby greatly improving overall working efficiency.
